YS-G6565Laser Cutting Machine Is a New Generation of Laser Cutting Machine

Name: YS-G6565Laser Cutting Machine Is a New Generation of Laser Cutting Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: Einheit für die Erfassung von Daten
Price: 30000 USD
Availability: InStock

Produkt-Details

Herkunftsort: In Guangdong

Markenname: YUSH

Modellnummer: Einheit für die Erfassung von Daten

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 1

Preis: USD30000

Lieferzeit: 20 arbeitstage

Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union

Versorgungsmaterial-Fähigkeit: 100

Beste Preis erhalten

Produkt-Details

Beschreibung des Produkts

Hervorheben:

Gewicht:	500 Kilo	Modell:	Einheit für die Erfassung von Daten
Positionsgenauigkeit:	± 2 μm	Laserleistung:	QCW-150W/1500W
Klemmgröße:	680 mm*720 mm

Gewicht:	500 Kilo
Modell:	Einheit für die Erfassung von Daten
Positionsgenauigkeit:	± 2 μm
Laserleistung:	QCW-150W/1500W
Klemmgröße:	680 mm*720 mm

YS-G6565Laser Cutting Machine Is a New Generation of Laser Cutting Machine

Equipment Introduction

G6565Laser cutting machine is a new generation of laser cutting machine, compared with the previous models in terms of performance or humanized operation design, has been significantly improved. According to the market demand of customers, the overall performance of the equipment has been raised to a new level. While improving the cutting speed, it also ensures excellent cutting quality. The performance and operability are completely comparable to imported equipment, and the cost performance is much higher than imported machines.

YS-G6565Laser Cutting Machine Is a New Generation of Laser Cutting Machine 0

Parameter

Machine Model	YS-G6565
Laser Power	QCW-150W/1500W
Laser Wavelength	1070nm
Beam Quality	M²<1.1
Cutting Speed	About 23000 pad/h
Working Range	650mm*650mm
Clamping Size	680mm*720mm

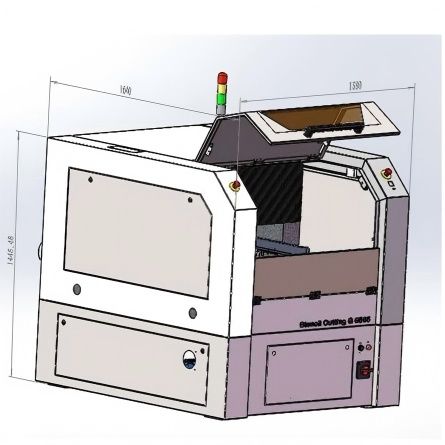

Overall Dimension	1640mm1380mm1500mm
Cutting Accuracy	±0.01mm (Specified material)
Positioning Accuracy	±2μm
(Repeated positioning accuracy)	±2μm
Cooling Way	Air cooling/water cooling
(Auxiliary cutting gas)	Oxygen 8-10Kg Compressed air16Kg

Product Features

1.Adopting double drive structure of linear motor with iron core, high inertia and large thrust, the maximum acceleration can reach 2.0G, ensuring high-speed and accurate action of the equipment;

2.The use of American imported drivers, advanced adjustment andsetting algorithms greatly improve cutting performance and ensure processing accuracy;

3.Imported IPG fiber laser, stable output power, long life, maintenance-free, vertical smooth processing hole wall, but also to ensure the stability of the processing process;

4.The whole machine adopts natural marble as the matrix structure,which is safe and stable;

5.Equipped with high-precision grating ruler full closed-loop system,real-time feedback, reduce repeated positioning error;

6.Convenient operation: the man-machine interface is simple and easy to understand, can process any plane graphics, the equipment is small in size;

7.The equipment has high reliability and can be continuously and stably produced for 24 hours to meet the needs of industrial mass production and process in Customized customization ability, can be tailored to customer needs to

create exclusive models;

Introduction of main modules of equipment:

1.Motion Module:

2.Rack Platform

3.Specification
