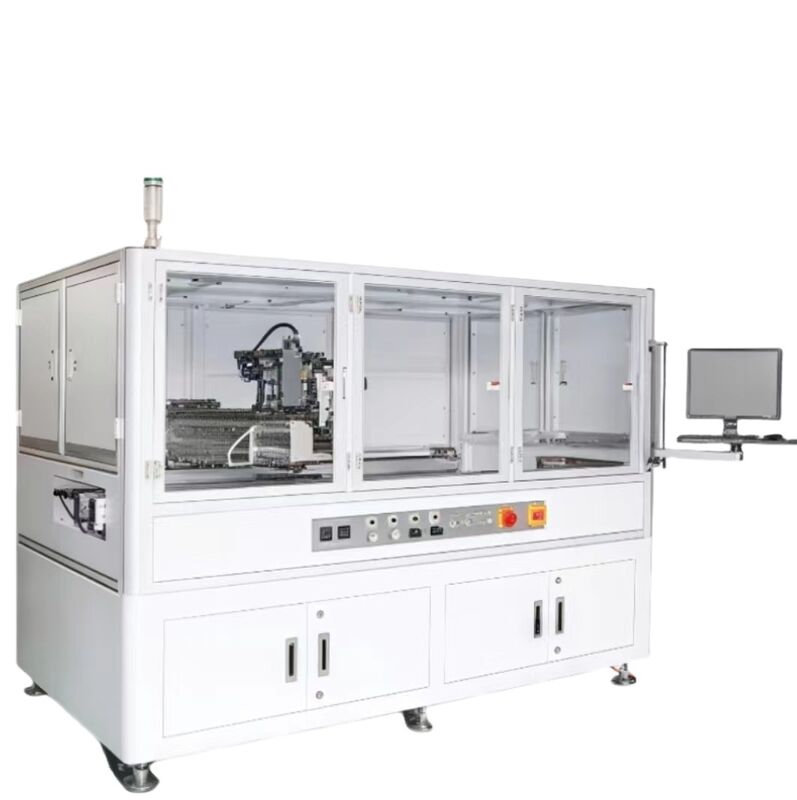

YS-D400 High Accuracy Stable High Precision Automatic LED LENS Dispensing Machine

Name: YS-D400 High Accuracy Stable High Precision Automatic LED LENS Dispensing Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-D400
Price: 9.00 USD
Availability: InStock

Produkt-Details

Herkunftsort: Jiangsu, China

Markenname: YUSH

Modellnummer: YS-D400

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 1 Satz

Preis: $8,800-10,800 / set

Beste Preis erhalten

Produkt-Details

Beschreibung des Produkts

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high precision LED lens dispensing machine, automatic PCB depaneling machine, stable YS-D400 dispensing machine


Gewicht:	650 kg	Verteilbereich:	X400Y400Z60mm
Methodik der Vision:	ccd	Reinigungssystem:	Automatisch
Injektionsventilgeschwindigkeit:	200 Punkte/s	Stromversorgung:	1 PH Wechselstrom 220V 50/60Hz (optional: 110V bis 230V)
Dimension:	L770B1200H1500mm	Kernkomponenten:	Motor, Pumpe
Plattformmaterial:	Marmor	Ausgabesystem:	Nadel-/Sprühventil
Kalibrierungsstandards:	0,1 mg elektronische Waage	Modell:	YS-D400
Maximaler Abgabebereich:	X1200Y400Z60mm	Maximales Gewicht:	1150 kg
Maximales Maß:	L1690B1200H1500mm

Gewicht:	650 kg
Verteilbereich:	X400Y400Z60mm
Methodik der Vision:	ccd
Reinigungssystem:	Automatisch
Injektionsventilgeschwindigkeit:	200 Punkte/s
Stromversorgung:	1 PH Wechselstrom 220V 50/60Hz (optional: 110V bis 230V)
Dimension:	L770B1200H1500mm
Kernkomponenten:	Motor, Pumpe
Plattformmaterial:	Marmor
Ausgabesystem:	Nadel-/Sprühventil
Kalibrierungsstandards:	0,1 mg elektronische Waage
Modell:	YS-D400
Maximaler Abgabebereich:	X1200Y400Z60mm
Maximales Gewicht:	1150 kg
Maximales Maß:	L1690B1200H1500mm

YS-D400 High Accuracy Stable High Precision Automatic LED LENS Dispensing Machine

Platform System

Integral frame with marble platform supporting moving parts. Moving parts utilize imported accessories to ensure high accuracy and stability of equipment operation.

Dispensing System

Needle dispensing and spray valve dispensing options available
Spray valve dispensing can be fixed or rotary
Optional CCD camera, laser altimeter, and glue sensor

Calibration System

0.1mg Electronic Scale
Scale and Ceramic Plate
Mechanical Height Detection
Vacuum Cleaning System
Gluing Cup

Technical Specifications

Model	YS-D400	YS-D600 (LENS)	YS-D1200 (LENS)
Dispensing Range	X400Y400Z60mm	X600Y600Z60mm	X1200Y400Z60mm
Vision Methodology	CCD
Cleaning System	Automatic
Injection Valve Speed	200 points/second
Power Supply	1 PH AC 220V 50/60Hz (Option: 110V to 230V)
Weight	650 kg	850 kg	1150 kg
Dimension	L770W1200H1500mm	L1065W1505H1500mm	L1690W1200H1500mm

Manufacturer Profile

YUSH Electronic Technology Co., Ltd was founded in 2005 and is located in Jiangsu, China's world manufacturing hub. The company specializes in professional PCB separator and PCB depaneling electronic equipment machinery. With advanced production and processing equipment, YUSH maintains an experienced development and manufacturing team where half of the personnel have over 10 years of experience in the electronic equipment industry.

Since 2004, the company leadership has invested in developing and manufacturing PCB separators and depaneling machines. YUSH prioritizes product quality, safety, and innovation, producing high-quality, stable performance, and cost-effective products that improve production yields and enhance customer competitiveness. The company offers various PCB separating solutions including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types. With good quality and reasonable pricing, YUSH serves customers worldwide and has become one of China's largest PCB separator production bases.
