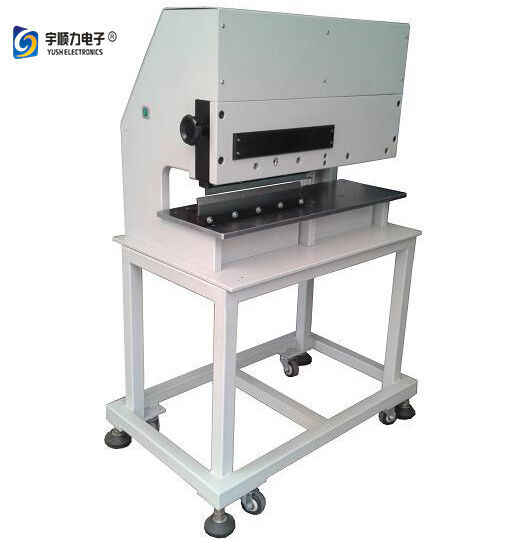

Name: Docking with the Next Machine PCB De-paneling Machine - YSVC-3
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-3
Price: 4 USD
Availability: InStock

Produkt-Details

Herkunftsort: Jiangsu, China

Markenname: YUSH

Modellnummer: YSVC-3

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 1 Satz

Preis: $4,000 / set

Beste Preis erhalten

Produkt-Details

Beschreibung des Produkts

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine with warranty, Next Machine PCB depaneler, YSVC-3 depaneling machine


Gewicht:	185 kg	Minimieren Sie die Dicke:	0,3-3,5 mm
Längste Minimierung:	Unbegrenzt	Größe:	780mmx500mmx620mm
Maximale Trennlänge:	Unbegrenzt	Component Height:	Bis zu 50 mm
PCB-Dicke:	00,3 mm bis 2,0 mm	Kontrollmethode:	pneumatisch angetrieben
Operationsmethode:	Fußpedal	Kernkomponenten:	SPS, Motor, Lager, Getriebe, Motor
Depaneling-Stress:	keine Biegung oder Spannung	Vibrationsniveau:	ohne Vibrationen
Verstellbarer Abstand:	Einfach zu justieren	Materialkompatibilität:	Aluminiumplatine, LED-Streifen
Sicherheitsfunktion:	Bediener narrensicher

Gewicht:	185 kg
Minimieren Sie die Dicke:	0,3-3,5 mm
Längste Minimierung:	Unbegrenzt
Größe:	780mmx500mmx620mm
Maximale Trennlänge:	Unbegrenzt
Component Height:	Bis zu 50 mm
PCB-Dicke:	00,3 mm bis 2,0 mm
Kontrollmethode:	pneumatisch angetrieben
Operationsmethode:	Fußpedal
Kernkomponenten:	SPS, Motor, Lager, Getriebe, Motor
Depaneling-Stress:	keine Biegung oder Spannung
Vibrationsniveau:	ohne Vibrationen
Verstellbarer Abstand:	Einfach zu justieren
Materialkompatibilität:	Aluminiumplatine, LED-Streifen
Sicherheitsfunktion:	Bediener narrensicher

Docking with the Next Machine PCB De-paneling Machine - YSVC-3

Technical Specifications

Model	YSVC-3
Maximum Cutting Length	Unlimited
Dimensions	780mm × 500mm × 620mm
Cutting Thickness Range	0.3-3.5mm
Machine Weight	185Kg

Key Operational Features

Cut any length metal board safely and easily
Separates long boards directly without turning direction
Separates boards up to 2.0mm thick metal board
Shears boards safely with parts as close as 1mm to the score line, including ceramic capacitors
Operator foolproof! Panels cannot be inserted into the knives except on the score line
Handles high components up to 50mm
Bow waves that can occur with round knives are avoided
Easy adjusting of distance between knives

Product Description

Maximum PCB depaneling length is unlimited with depaneling performed without bending and tension stress. The machine ensures safety and easy operation with a vibration-free depaneling process.

Advanced Features

Designed to depanel pre-scored PCB carefully without bending and tension stress
Even sensitive SMD components like ceramic capacitors remain undamaged during depaneling
Thin boards down to 0.3mm can be worked safely
Vibration-free depaneling process
Pneumatic-driven and electromagnetic valve control method
Foot pedal operation for convenient PCB depaneling
Accommodates components up to 50mm near the V-groove
Easy adjustment of PCB insertion gap

Competitive Advantages

Payment: T/T
Delivery: Within 7 days after receipt of payment
Origin: Suzhou City, Jiangsu Province, China
Minimum Order: 1 set
Packaging: Seaworthy plywood case, safe, no fumigation required
Inspection: Internal quality control
Samples: Not Available
Specialization: Especially designed for depaneling aluminum PCB and LED strips
