Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine for assembly, practical PCB depaneling tool, PCB depaneling machine with warranty


Gewicht:	350 kg	Leistung:	110V/220V WECHSELSTROM 60HZ/50HZ
Größe:	L1300W400H1000mm	PCB-Dicke:	0,8-3,0 mm
Kernkomponenten:	SPS, Motor	Schnittgeschwindigkeit:	Einstellbar
Einstellung des Obermessers:	0-5mm	Einzelne Leiterplattenbreite:	15-20mm
Klingenmaterial:	Skh51 Schnellarbeitsstahl	Anwendbare Plattenbreite:	>400mm
Schneidprozess:	Unbegrenzt	Messereinstellung:	Bildschirm anzeigen
Fließband:	Im Lieferumfang enthalten	Mehrere Fräser:	Ja
Typ:	Luft

Gewicht:	350 kg
Leistung:	110V/220V WECHSELSTROM 60HZ/50HZ
Größe:	L1300W400H1000mm
PCB-Dicke:	0,8-3,0 mm
Kernkomponenten:	SPS, Motor
Schnittgeschwindigkeit:	Einstellbar
Einstellung des Obermessers:	0-5mm
Einzelne Leiterplattenbreite:	15-20mm
Klingenmaterial:	Skh51 Schnellarbeitsstahl
Anwendbare Plattenbreite:	>400mm
Schneidprozess:	Unbegrenzt
Messereinstellung:	Bildschirm anzeigen
Fließband:	Im Lieferumfang enthalten
Mehrere Fräser:	Ja
Typ:	Luft

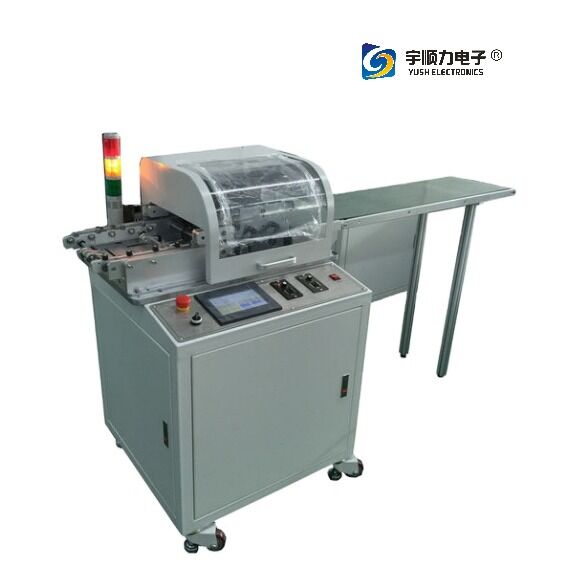

High Quality Practical PCB Depaneling Machine for PCB Assembly

Key Features & Benefits

Integral shaft design for top and bottom knives ensures easy installation and handling
Computer screen control with production counting and direct gap display
Compatible with all V-cut PCB boards
Reduces stress during cutting to prevent solder joint cracking
Multiple cutter configuration enables simultaneous cutting of several boards
Top cutter wheel adjustable from 0-5mm for precision control
Adjustable knife distance suitable for single PCB boards within 15-20mm width
SKH51 high-speed steel blades for extended service life and wear resistance
Variable cutting speed controlled by convenient turn-knob adjustment
Integrated conveyor belt for automatic board ejection and seamless production line integration
Simple, efficient operation ideal for high-volume mass production

Material Compatibility

This depaneling machine efficiently processes LED panels, fiberboards, aluminum boards (400mm+), and specialized board materials.

Technical Specifications

Power Supply	110V/220V AC 60Hz/50Hz
Dimensions	1300mm (L) × 400mm (W) × 1000mm (H)
Weight	350kg
Cutting Process	Unlimited operation capability
PCB Thickness Range	0.8-3.0mm
Compatible Materials	LED panels, fiberboards, aluminum boards (400mm+), special boards
