Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT PCB cutting machine, PCB depaneling machine for assembly, printed circuit board cutting tool


Gewicht:	350 kg	Stromspannung:	220V
Leistung:	110V/220V WECHSELSTROM 60HZ/50HZ	Größe:	L1300W400H1000mm
PCB-Dicke:	0,8-3,0 mm	Schnittgeschwindigkeit:	Einstellbar
Einstellung des Obermessers:	0-5mm	Bereich der Brettbreite:	15-20mm
Klingenmaterial:	Skh51 Schnellarbeitsstahl	Kernkomponenten:	SPS, Motor
Schneidprozess:	Unbegrenzt	Anwendbare Boards:	LED-Panel, Faserplatte, Aluminiumplatte (>400 mm)
Messereinstellung:	Abstand einstellbar	Fließband:	Im Lieferumfang enthalten
Mehrere Fräser:	Ja

Gewicht:	350 kg
Stromspannung:	220V
Leistung:	110V/220V WECHSELSTROM 60HZ/50HZ
Größe:	L1300W400H1000mm
PCB-Dicke:	0,8-3,0 mm
Schnittgeschwindigkeit:	Einstellbar
Einstellung des Obermessers:	0-5mm
Bereich der Brettbreite:	15-20mm
Klingenmaterial:	Skh51 Schnellarbeitsstahl
Kernkomponenten:	SPS, Motor
Schneidprozess:	Unbegrenzt
Anwendbare Boards:	LED-Panel, Faserplatte, Aluminiumplatte (>400 mm)
Messereinstellung:	Abstand einstellbar
Fließband:	Im Lieferumfang enthalten
Mehrere Fräser:	Ja

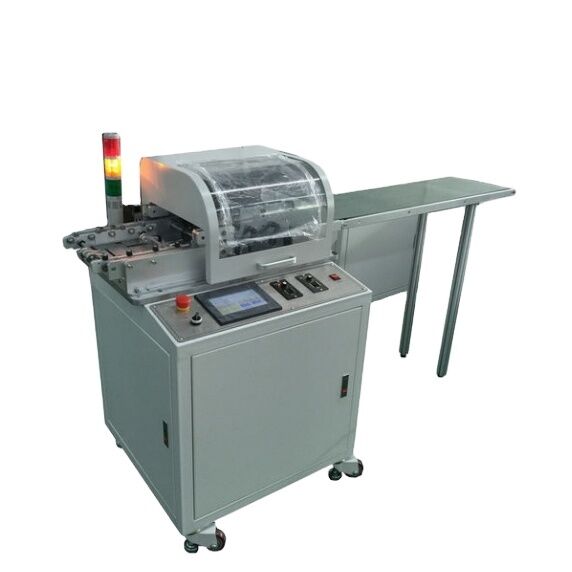

High Quality SMT Printed Circuit Board Cutting Machine for PCB Assembly

YSVJ-650 PCB Depaneling Machine

High Quality SMT Printed Circuit Board Cutting Machine for PCB Assembly

Key Features

Integral shaft design for top and bottom knives ensures convenient installation and handling
Computer screen control with production counting and direct gap display
Capable of cutting all V-cut PCB boards
Reduces stress during cutting to prevent solder joint cracking
Multiple cutter configuration allows cutting several boards simultaneously
Top cutter wheel adjustable from 0-5mm
Adjustable knife distance suitable for single PCB boards within 15-20mm width
SKH51 high-speed steel blades for long service life and wear resistance
Variable cutting speed controlled by turn-knob
Integrated conveyor belt for automated board handling and next-machine docking
Versatile application for LED panels, fiberboards, aluminum boards (400mm+), and special boards
Efficient operation suitable for mass production environments

Technical Specifications

Power Supply	110V/220V AC 60HZ/50HZ
Dimensions	L1300 × W400 × H1000mm
Weight	350kg
Cutting Process	Unlimited
PCB Thickness Range	0.8-3.0mm
Applicable Materials	LED panels, fiberboards, aluminum boards (400mm+), special boards

Manufacturer Profile

YUSH Electronic Technology Co., Ltd. was founded in 2004 and is located in Jiangsu, China. We specialize in professional PCB separator and depanelizer electronic equipment machinery. Our company features advanced production and processing equipment supported by an experienced development and manufacturing team, with half of our staff possessing over 10 years of experience in the electronic equipment industry.

Since 2004, we have focused on developing and manufacturing PCB separators and depaneling machines, emphasizing product quality, safety, and innovation. Our product line includes high-quality, stable performance, cost-effective solutions that improve production yields and enhance customer competitiveness. We offer various PCB separation types including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router machines.

Quality Assurance

• Pre-production sampling before mass production

• Final inspection before shipment

Product Range

PCB depaneling, PCB separator, PCB cutting machine, PCB depaneler, V-cut machine

Global Presence

Our customers are located worldwide, including Eastern Europe (20%), North America (20%), South America (15%), Southern Europe (10%), Northern Europe (10%), Western Europe (10%), South Asia (10%), and Middle East (5%).

Payment & Delivery

Accepted Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF

Accepted Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow

Languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
