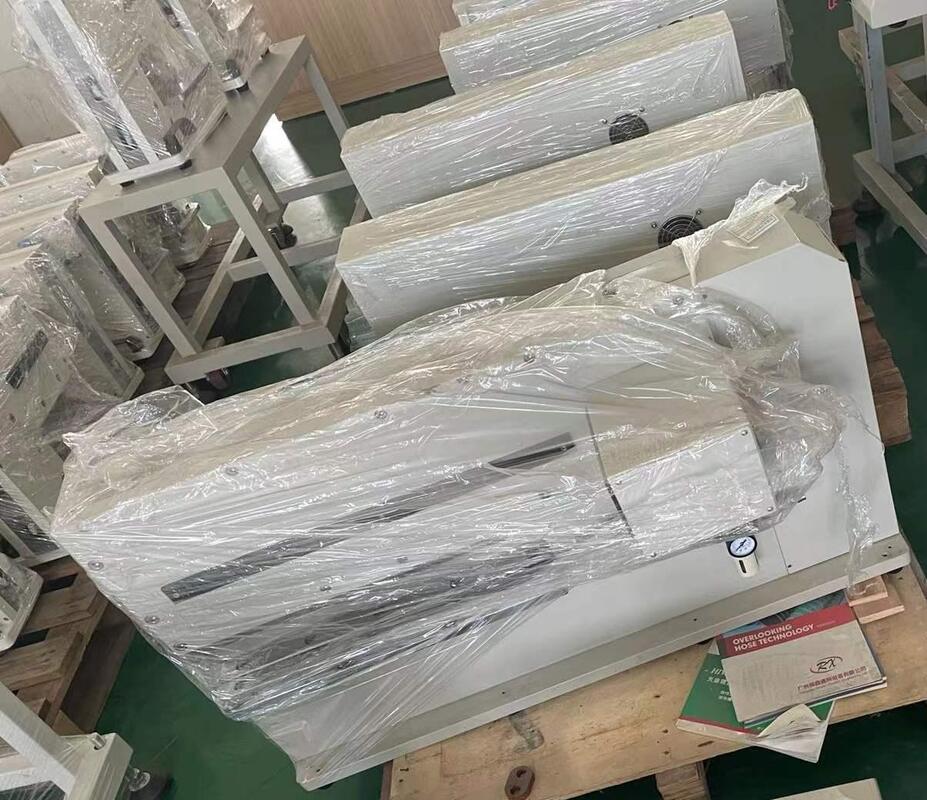

FR4 Circuit Board Cutting Machine Assembly, PCB Board Cuttingg Machine in China

Name: FR4 Circuit Board Cutting Machine Assembly, PCB Board Cuttingg Machine in China
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-2
Price: 401.00 USD
Availability: InStock

Produkt-Details

Herkunftsort: Jiangsu, China

Markenname: YUSH

Modellnummer: YSVC-2

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 1 Satz

Preis: $3,800 / set

Beste Preis erhalten

Produkt-Details

Beschreibung des Produkts

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                FR4 PCB cutting machine assembly, PCB depaneling machine with warranty, China circuit board cutting machine


Gewicht:	165 kg	Maximale Länge:	330mm
Schnittstärke:	0,3-3,5 mm	Stromspannung:	110V/220V
Arbeitsluftdruck:	0,5-0,7 MPA	Größe:	620230400mm
Kernkomponenten:	SPS, Motor	Maximale Teilhöhe:	70mm
Min. Komponentenabstand:	0,5 mm	Antriebstyp:	Pneumatisch
Kontrolltyp:	Elektromagnetisches Ventil	Messertyp:	Gerade
Anpassungsmechanismus:	Einstellknopf	Operationsmethode:	Fußpedal
Materialkompatibilität:	PWB fr4

Gewicht:	165 kg
Maximale Länge:	330mm
Schnittstärke:	0,3-3,5 mm
Stromspannung:	110V/220V
Arbeitsluftdruck:	0,5-0,7 MPA
Größe:	620230400mm
Kernkomponenten:	SPS, Motor
Maximale Teilhöhe:	70mm
Min. Komponentenabstand:	0,5 mm
Antriebstyp:	Pneumatisch
Kontrolltyp:	Elektromagnetisches Ventil
Messertyp:	Gerade
Anpassungsmechanismus:	Einstellknopf
Operationsmethode:	Fußpedal
Materialkompatibilität:	PWB fr4

FR4 Circuit Board Cutting Machine Assembly, PCB Board Cuttingg Machine in China

FR4 Circuit Board Cutting Machine Assembly

YSVC-330 and YSVC-220 models available for precise PCB board depaneling

Machine Overview

Our FR4 circuit board depaneling machine offers easy maintenance and operation, capable of safely shearing thin PCBs down to 0.3mm thickness. The pneumatic drive unit ensures vibration-free shearing process for optimal results.

Technical Specifications

Maximum Length	330mm (Custom sizes available)
Cutting Thickness	0.3-3.5mm
Voltage and Power	110V/220V
Working Air Pressure	0.5-0.7Mpa
Machine Size	620×230×400mm
Weight	165kg

Key Features

Pneumatically driven with electromagnetic valve control
Vibration-free shearing process due to pneumatic drive unit
Safe shearing of PCBs with sensitive SMD components and capacitors
Foot pedal operation for convenient shearing control
Accommodates components up to 70mm near V-groove
Minimum 0.5mm clearance between V-groove and electronic components
Easy gap adjustment via front-mounted knob

All-Purpose Straight Knife PCB Separator

This pneumatically driven, electrically controlled straight knife separator is designed to carefully separate pre-scored panel boards without bending or tension stress. The specialized knife design safely separates boards with high components placed close to edges, using wedge-shaped knives to cut within the groove for stress-free separation of boards under 1mm thickness.

Advanced Performance Features

Vibration-free operation prevents damage to precision PCBs
Easy board insertion gap adjustment via top-mounted knob with low friction design
Adjustable lower knife height with separate front and rear adjustment
No thin plates required after knife re-sharpening
Simple operation and maintenance suitable for unskilled personnel
