                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                automatic PCB depaneling machine, double direction PCB splitter, PCB splitting machine with warranty


Gewicht:	300 KG	Leistung:	300kw
Stromspannung:	220V/110V	Kernkomponenten:	PLC, Getriebe, Motor, Pumpe
Modell:	YSV-5A	Operationstyp:	Automatisch
Schnittanweisungen:	Horizontale und vertikale	SPS-Datenspeicherung:	100 Gruppen
Produktaustauschzeit:	10 Minuten	Schneidfläche:	Glatt ohne Grate
Zusatzeinrichtung:	Staubsauger	Touchscreen-Bedienung:	Ja
Modulares Backend:	Ja	Einzelrichtungsmodus:	Ja
Bidirektionaler V-Schnitt:	Ja

Gewicht:	300 KG
Leistung:	300kw
Stromspannung:	220V/110V
Kernkomponenten:	PLC, Getriebe, Motor, Pumpe
Modell:	YSV-5A
Operationstyp:	Automatisch
Schnittanweisungen:	Horizontale und vertikale
SPS-Datenspeicherung:	100 Gruppen
Produktaustauschzeit:	10 Minuten
Schneidfläche:	Glatt ohne Grate
Zusatzeinrichtung:	Staubsauger
Touchscreen-Bedienung:	Ja
Modulares Backend:	Ja
Einzelrichtungsmodus:	Ja
Bidirektionaler V-Schnitt:	Ja

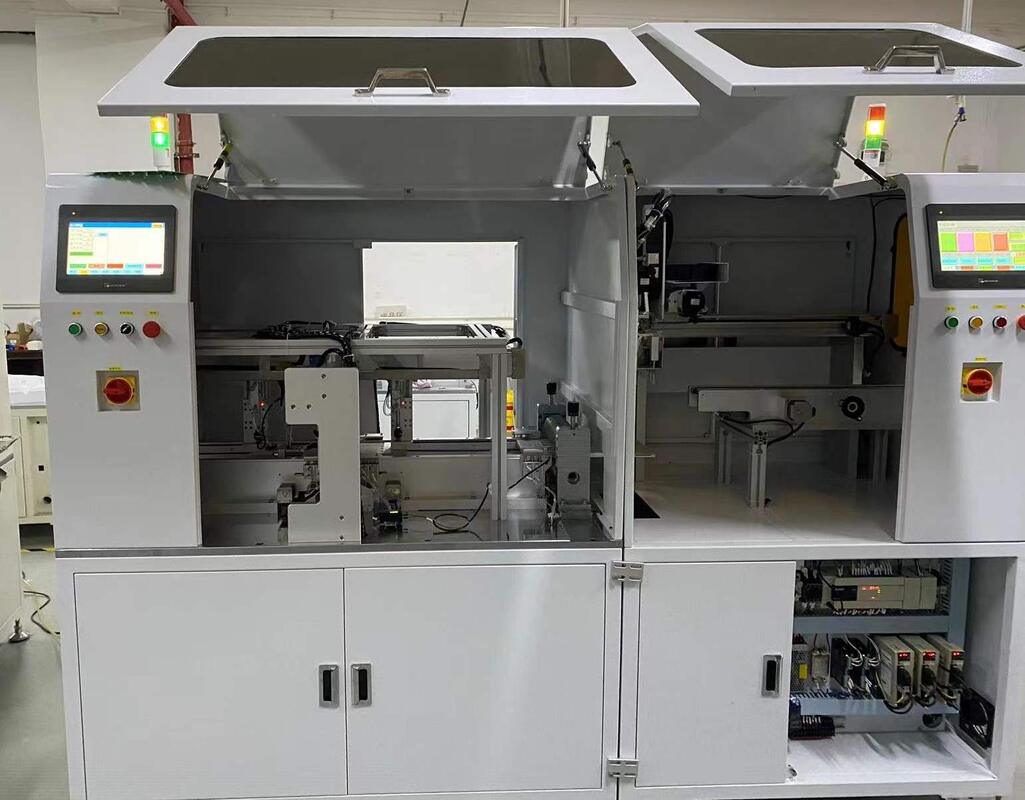

Automatic Double Directions PCB Splitting Machine

The YSV-5A automatic PCB depaneling machine is an advanced bidirectional splitting system that performs both horizontal and vertical cutting operations in a single process. This innovative solution eliminates the need for secondary separation of PCB boards, significantly improving production efficiency.

Key Product Features

Bidirectional horizontal and vertical splitting capability for V-cut PCB boards, downlight boards, and LED aluminum plates
Complete two-way cutting in a single operation, saving time and labor
Produces smooth cutting surfaces without burrs
Solves the industry challenge of bidirectional V-slot line PCB board separation
Eliminates need for manual secondary splitting operations

Technical Specifications

High automation level with compatibility for integration with other equipment
Touch-screen operation for quick changeover between different PCB sizes
Modular back-end sub-board system with 10-minute product replacement
PLC data storage capacity for up to 100 product groups
Configurable for single-direction or bidirectional splitting operations
Optional vacuum cleaner accessory available

Manufacturer Information

YUSH Electronic Technology Co., Ltd. was established in 2004 and is located in Jiangsu, China's manufacturing hub. The company specializes in professional PCB separator and depaneling equipment manufacturing.

With advanced production facilities and an experienced development team (half with over 10 years in electronic equipment industry), YUSH has focused on PCB separation technology since 2004. The company prioritizes product quality, safety, and innovation, delivering high-performance, cost-effective solutions that enhance customer productivity and competitiveness.

YUSH offers a comprehensive range of PCB separation equipment including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router systems. Their quality products at competitive prices have earned them a global customer base, establishing YUSH as one of China's leading PCB separator production bases.
