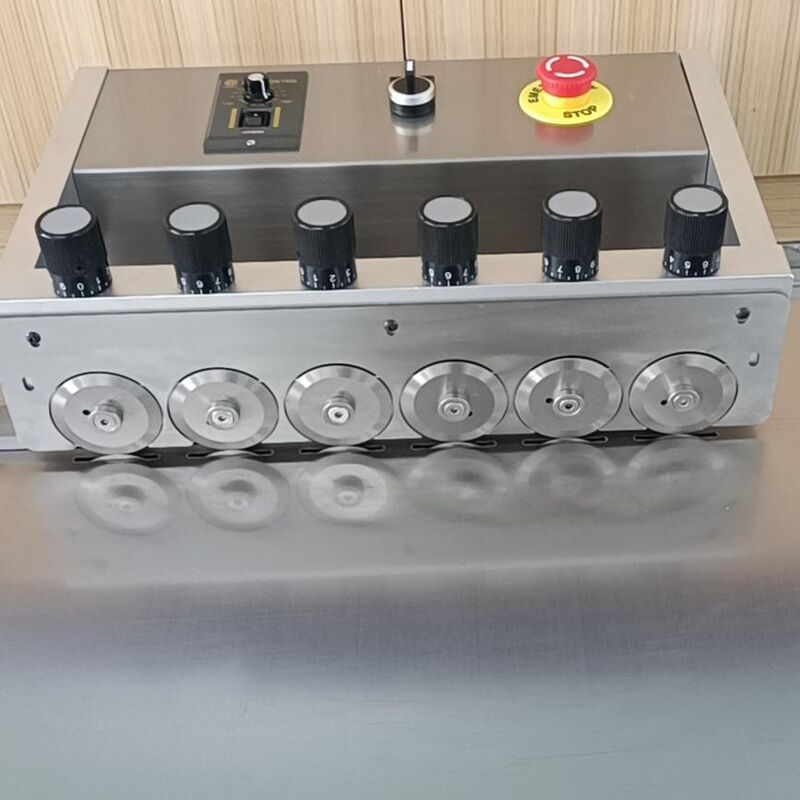

Lamp Splitter Machine YS-750

Name: Lamp Splitter Machine YS-750
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-750
Price: 5 USD
Availability: InStock

Produkt-Details

Herkunftsort: Jiangsu, China

Markenname: YUSH

Modellnummer: YS-750

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 1 Satz

Preis: $5,000 / set

Beste Preis erhalten

Produkt-Details

Beschreibung des Produkts

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine YS-750, lamp splitter machine for PCBs, YS-750 depaneling machine with warranty


Gewicht:	65 KG	Maschinenabmessungen:	490mm400mm350mm
Flechten Sie Größe:	1200450350mm	Maximale Teilerlänge:	Unbegrenzt
Spalte-Plattengeschwindigkeit:	80, 120, 200, 400mm/S	Leistung:	60W
Werkzeug-Material:	SKD61 Hochgeschwindigkeitsstahl	Plattenstärke:	0,2-5 mm
Maschinengewicht:	1,2 m – 65 kg; 2,4 m – 75 kg	Stromversorgung:	230V/50Hz (110V/60Hz)
Tip Beat:	0,02 mm	Kernkomponenten:	SPS, Lager, Motor
Schmalstes Brett:	3,5 mm	Tagesleistung:	12.000 bis 15.000 Streifen
Geschwindigkeit:	400 M/S

Gewicht:	65 KG
Maschinenabmessungen:	490mm400mm350mm
Flechten Sie Größe:	1200450350mm
Maximale Teilerlänge:	Unbegrenzt
Spalte-Plattengeschwindigkeit:	80, 120, 200, 400mm/S
Leistung:	60W
Werkzeug-Material:	SKD61 Hochgeschwindigkeitsstahl
Plattenstärke:	0,2-5 mm
Maschinengewicht:	1,2 m – 65 kg; 2,4 m – 75 kg
Stromversorgung:	230V/50Hz (110V/60Hz)
Tip Beat:	0,02 mm
Kernkomponenten:	SPS, Lager, Motor
Schmalstes Brett:	3,5 mm
Tagesleistung:	12.000 bis 15.000 Streifen
Geschwindigkeit:	400 M/S

Lamp Splitter Machine YS-750

Key Features

Six-stage cutting system minimizes shear stress with integrated deformation control for smooth, flat edges without twisting or warping
Handles ultra-thin 0.6mm aluminum substrates while maintaining deformation control within two wires
Multiple cutting process ensures smooth operation and precise V-CUT slot positioning
All cutting blades calibrated with dual-frequency laser interferometer for tip beat ≤0.02mm
Stainless steel platform with laser calibration positioning (1.2m or 2.4m options available)

Application Fields

The YS-750 is designed for electronic, electrical, lighting, medical, automotive, new energy, and various electronic technology industries.

Quality Comparison

Defective PCB board before processing:

Machine-processed PCB board after splitting:

Technical Specifications

Parameter	Specification
Machine Dimensions	490mm × 400mm × 350mm
Platform Size	1200×450×350mm / 2400×450×35mm
Maximum Split Length	Unlimited
Splitting Speed	80, 120, 200, 400mm/s
Power	60W
Tool Material	SKD61 High Speed Steel
Plate Thickness Range	0.2-5mm
Machine Weight	1.2M--65KG; 2.4M--75KG
Power Supply	230V/50Hz (110V/60Hz)

Board Operation Procedure

Value Proposition

Cost Saving: Unlimited cutting length, wide thickness range (0.2-5mm), German imported high-speed steel blades with extended durability (over one year for aluminum substrates).

High Equipment Efficiency: Free X and Y axis adjustment for maximum cutting precision, speeds up to 400mm/s, simple operation with accurate upper/lower round knife adjustment.

Quality Assurance: Laser-interferometer calibrated blades ensure perfect cutting quality with tip beat ≤0.02mm.

Equipment Advantages

Cost-efficiency: Vertically adjustable V-groove guide for different substrate thicknesses; reversible cutting knives for multiple uses
Safety Design: Minimal cutting stroke (1-2mm) ensures operational safety
Stability Performance: SKD11 high-speed steel blade components with one-year warranty; unlimited board length capability

Process Solutions

How narrow can the light strip board be split?

The narrowest board can be less than 3.5mm. For aluminum base plates, we recommend using a double knife seat dividing machine.

What about machine maintenance, consumables, and lifespan?

All company products include blades and accessories with 3-month warranty. Blade lifespan depends on material quality (imported high-speed steel lasts longer) and cutting board material (glass fiber boards are more durable than aluminum substrates).

How many light strips can be processed daily?

The light strip splitter can process 12,000 to 15,000 strips per day at 400mm/s speed over 8-10 hours of operation.
