Pcb Circuit Board UV Laser Depanelizer Machine . UV Laser Cutting Machine (YS-GW50)

Name: Pcb Circuit Board UV Laser Depanelizer Machine . UV Laser Cutting Machine (YS-GW50)
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-GW50
Price: 75.00 USD
Availability: InStock

Produkt-Details

Herkunftsort: Jiangsu, China

Markenname: YUSH

Zertifizierung: ce

Modellnummer: YS-GW50

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 1 Satz

Preis: $50,000-100,000 / set

Beste Preis erhalten

Produkt-Details

Beschreibung des Produkts

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB UV laser depaneling machine, UV laser cutting machine for PCB, YS-GW50 laser depanelizer machine


Gewicht:	600 kg	Laserwellenlänge:	355nm
Laserleistung:	10W	Maximales Verarbeitungsformat:	610 mm x 500 mm
Geschwindigkeit der XY-Plattform:	50 m/min	Positionierungsgenauigkeit:	±3um
Wiederholbarkeit:	±1 um	Systempräzision:	±20um
Scanbereich des Galvanometers:	50mm x 50mm	Schnittstärke:	<1mm>
Stromversorgung:	AC220V 50Hz / 2,2KW; dreiphasig 380V 50Hz / 5,5KW	Luftbedarf:	516m3/h
Abmessungen:	1818 mm x 2317 mm x 1550 mm	Umgebungstemperatur:	20℃ ±2℃
Luftfeuchtigkeit:	<60 % relative Luftfeuchtigkeit, nicht kondensierend

Gewicht:	600 kg
Laserwellenlänge:	355nm
Laserleistung:	10W
Maximales Verarbeitungsformat:	610 mm x 500 mm
Geschwindigkeit der XY-Plattform:	50 m/min
Positionierungsgenauigkeit:	±3um
Wiederholbarkeit:	±1 um
Systempräzision:	±20um
Scanbereich des Galvanometers:	50mm x 50mm
Schnittstärke:	<1mm>
Stromversorgung:	AC220V 50Hz / 2,2KW; dreiphasig 380V 50Hz / 5,5KW
Luftbedarf:	516m3/h
Abmessungen:	1818 mm x 2317 mm x 1550 mm
Umgebungstemperatur:	20℃ ±2℃
Luftfeuchtigkeit:	<60 % relative Luftfeuchtigkeit, nicht kondensierend

Pcb Circuit Board UV Laser Depanelizer Machine . UV Laser Cutting Machine (YS-GW50)

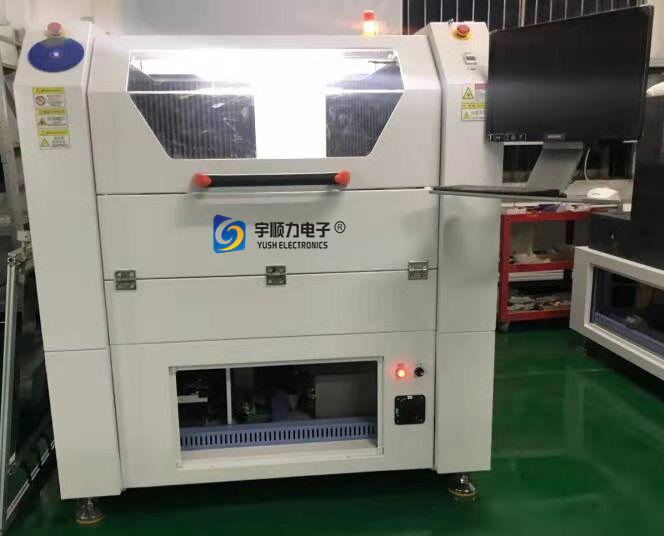

PCB Circuit Board UV Laser Depanelizer Machine (YS-GW50)

The YS-GW50 PCB Circuit Board UV Laser Depaneling Machine from YUSH Technology is designed for precision cutting of flexible circuit boards and organic coatings. This advanced UV laser cutting system eliminates the need for molds or protective plate fixation, delivering superior processing speed and precise machining results.

Machine Applications

Ideal for precision cutting of flexible circuit boards (FPC), CVL, RF components, and thin plywood materials. The system processes various substrate materials including silicon, ceramic, and glass with exceptional accuracy.

Key Features

Proprietary control software with intuitive interface and comprehensive functionality
Capable of processing any graphics and cutting different thicknesses and materials with synchronized hierarchical completion
Optimized optical system design ensures high beam quality and reduced focused spot size for precision cutting
High-performance UV laser with optimal wavelength, superior beam quality, and high peak power characteristics
Minimal thermal effect with no delamination, producing precise, smooth cuts with steep sidewalls
Vacuum sample fixation system eliminates need for mold protection plates
Automatic correction, positioning, multi-plate cutting, thickness measurement and compensation capabilities

Technical Specifications

Laser System

Solid-state UV laser source: 355nm wavelength

Laser power: 10W

Processing Capabilities

Maximum processing format: 610mm × 500mm (24" × 18")

XY platform maximum operating speed: 50m/min

Cutting thickness: <1mm

Galvanometer scanning range: 50mm × 50mm

Precision Metrics

Positioning accuracy: ±3μm

Repeatability: ±1μm

System precision: ±20μm

Power & Environmental Requirements

Power Supply	AC220V 50Hz / 2.2KW; Three-phase 380V 50Hz / 5.5KW
Ventilation Requirements	516m³/h
Dimensions	1818mm × 2317mm × 1550mm
Ambient Temperature	20℃ ± 2℃
Humidity	<60% RH non-condensing
Ground Amplitude	<5μm
Vibration Acceleration	<0.05g
Ground Pressure	2200kgf/m²

Control & Software

Industry-specific control equipment with flexible processing software, dedicated motion control card, and IPC control mode. Features 17-inch monitor, 300G+ hard drive, and supports standard G-code, Gerber data, and CAD formats.

Quick Specifications

Maximum Board Length	610 × 500mm
Package Size	1818mm × 2317mm × 1550mm
Thickness	1mm
Power Supply	AC220V 50Hz / 2.2KW; Three-phase 380V 50Hz / 5.5KW
Working Air Pressure	516m³/h
Scope of Application	All V-CUT SMD PCB FPC boards
