                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                YSV-1 PCB depaneling machine, PCB depanelizer with warranty, high precision PCB depaneling tool


Stromspannung:	220 / 110 V	Leistung:	3.5 KW
Gewicht:	40 KG	Abmessungen:	420280400 mm
PCB -Schneidlänge:	330 mm	Schnittgeschwindigkeit:	0~400 mm/s
Schnittstärke:	1,0~3,5 mm	Stromversorgung:	110/220 v
Kernkomponenten:	Motor	Klingenmaterial:	SKH-9 (Japan)
Schimmelmaterial:	SKH-11 Stahl	Betriebsmodi:	Manuell, halbautomatisch, vollautomatisch
Gleitführungstyp:	Kugellager	Lieferzeit:	1 Tag
Produktionskapazität:	1000 Sätze

Stromspannung:	220 / 110 V
Leistung:	3.5 KW
Gewicht:	40 KG
Abmessungen:	420280400 mm
PCB -Schneidlänge:	330 mm
Schnittgeschwindigkeit:	0~400 mm/s
Schnittstärke:	1,0~3,5 mm
Stromversorgung:	110/220 v
Kernkomponenten:	Motor
Klingenmaterial:	SKH-9 (Japan)
Schimmelmaterial:	SKH-11 Stahl
Betriebsmodi:	Manuell, halbautomatisch, vollautomatisch
Gleitführungstyp:	Kugellager
Lieferzeit:	1 Tag
Produktionskapazität:	1000 Sätze

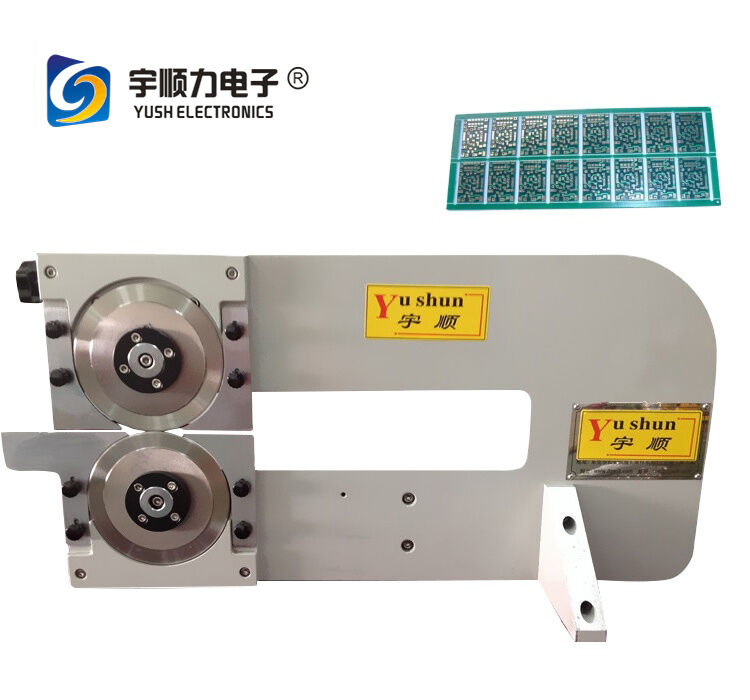

PCB Depanelizer Suppliers -YSV-1

YSV-1 PCB Depanelizer

Technical Specifications

Model	YSV-1
PCB Cutting Length (mm)	330
Cutting Speed (mm/s)	0~400
Cutting Thickness (mm)	1.0~3.5
Power Supply (V)	110/220
Size (mm)	420280400
Weight (Kg)	40
Guarantee (Year)	1
Delivery (Day)	1
Ability (Set)	1000
Min. Order (Set)	1

Product Applications

Designed for precision depaneling of electronics components including:

Cell phones and computers
PCB and FPC (flexible printed circuit boards)
LED components

Features high-quality SKH-11 steel molds and SKH-9 blades from Japan, engineered for rigorous cutting applications with excellent toughness and high-strength performance, capable of cutting metal boards.

Technical Characteristics

Precision structural design with even load distribution to eliminate internal stress
Safe and easy to operate

Key Features

Minimizes shearing stress to prevent micro-cracks in solder joints
Integrated "V-CUT" guiding device for PCB alignment
Ball bearing slideways for easy PCB edge guide adjustment
Ball bearing slideways for simple tabletop height setting
Multiple operating modes: manual handwheel, semi-automatic button operation, or fully-automatic continuous running
Re-grindable cutters for extended tool life
Customizable cutter shapes available
