Name: Two-slide Separator for PCB Board Cutting-YSVC-650
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-650
Price: 9 USD
Availability: InStock

Produkt-Details

Herkunftsort: Jiangsu, China

Markenname: YUSH

Modellnummer: YSVC-650

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 1 Satz

Preis: $9,000 / set

Beste Preis erhalten

Produkt-Details

Beschreibung des Produkts

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine two-slide separator, YSVC-650 PCB board cutter, PCB separator with warranty


Gewicht:	600 kg	Abmessungen:	1220 mm * 1450 mm * 1420 mm
Höhenversatz:	60 ~ 110 mm	PCB-Größe:	322 mm * 322 mm
PCB-Dicke:	5mm	Spindelgeschwindigkeit:	50000 U/min/min
Schnittgeschwindigkeit:	100mm/s	Fahrgeschwindigkeit:	3000mm/s
Präzision beim Schneiden:	0,01 mm	Achsenpräzise:	0,001 mm
Leistung:	2,2 kW AC380 V	Luftdruck:	2 ~ 5 kg/cm2
Motorleistung:	400W	Vakuumkraft:	2,2 kW Wechselstrom 380 V
Arbeitsbereich:	680 mm * 360 mm * 50 mm

Gewicht:	600 kg
Abmessungen:	1220 mm * 1450 mm * 1420 mm
Höhenversatz:	60 ~ 110 mm
PCB-Größe:	322 mm * 322 mm
PCB-Dicke:	5mm
Spindelgeschwindigkeit:	50000 U/min/min
Schnittgeschwindigkeit:	100mm/s
Fahrgeschwindigkeit:	3000mm/s
Präzision beim Schneiden:	0,01 mm
Achsenpräzise:	0,001 mm
Leistung:	2,2 kW AC380 V
Luftdruck:	2 ~ 5 kg/cm2
Motorleistung:	400W
Vakuumkraft:	2,2 kW Wechselstrom 380 V
Arbeitsbereich:	680 mm * 360 mm * 50 mm

Two-slide Separator for PCB Board Cutting-YSVC-650

Two-slide Separator for PCB Board Cutting - YSVC-650

Professional two-slide separator designed for precision PCB board cutting and depaneling applications.

Machine Specifications

Physical Dimensions

Dimensions (W × D × H): 1220mm × 1450mm × 1420mm

Height Offset: 60-110mm

Manipulator System

Motor Type: JiaBao series

Positioning Repeatability: 0.001mm

Axis Working Area (Max): 680mm × 360mm × 50mm

Work Station

PCB Fixation: Standard, specialization

PCB Loading/Unloading: Manual

PCB Size (Max): 322mm × 322mm

PCB Thickness (Max): 5mm

Fixturing System

Rigidity Fixturing: Standard

Fixturing Fixation: Mechanical

Spindle Motor

Power: 400W

Spindle Speed: 50,000 rpm/min

Protection: Self / Wind cooling

Cutter Change: Specialization

Routing Capability

Cutting Speed (Max): 100mm/s

Driving Speed (Max): 3000mm/s

Cutting Precision: 0.01mm

Vacuum System

Vacuum Power: 2.2KW AC 380V

Vacuum Plumb: Standard

Utilities

Power: 2.2KW AC380V

Air Supply Pressure: 2-5 KG/cm²

Programming & Control Features

Program Editing

Inline program editing
Function edit: Line, arc, circular, U-curve
Program storage: HDD

Vision & Automation

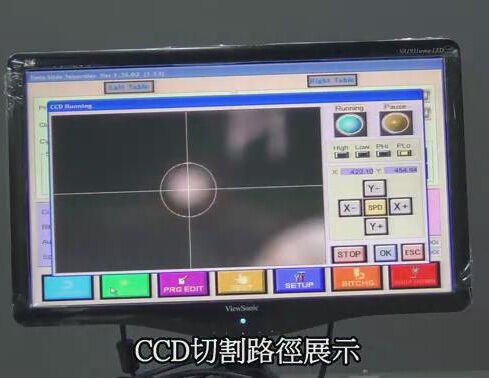

SONE color CCD vision system
Automatic milling cutter offset
Automatic vacuum setup

Operation Monitoring

Machine state indicator
Automatic tool life detection and usage time testing
Motor protection: Overheating, overload, low voltage protection
Motor overload checking: Overload, line normal, low voltage protection
Automatic tool usable time detection
Data statistics: Separate board model, separating count, diverse counting methods
Error recording: Software automatically records all alarms and machine memory

Accuracy Specifications

Axis Precision: 0.001mm

Cutting Precision: 0.1mm

Safety Features
