Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine YSVJ-650, PCB separator depaneling machine, YSVJ-650 PCB depaneling equipment


Gewicht:	350kgs	Stromspannung:	220V
Leistung:	110V/220V WECHSELSTROM 60HZ/50HZ	Größe:	L1300W400H1000mm
PCB-Dicke:	0,8-3,0 mm	Schnittgeschwindigkeit:	Einstellbar
Klingenmaterial:	Skh51 Schnellarbeitsstahl	Einstellung des Obermessers:	0-5mm
Bereich der Brettbreite:	15-20mm	Anwendbares Brett:	LED-Panel, Faserplatte, Aluminiumplatte (>400 mm)
Kernkomponenten:	PLC, Getriebe, Motor, Pumpe	Schneidprozess:	Unbegrenzt
Fließband:	Im Lieferumfang enthalten	Mehrere Fräser:	Ja
Bildschirm anzeigen:	Lückenanzeige

Gewicht:	350kgs
Stromspannung:	220V
Leistung:	110V/220V WECHSELSTROM 60HZ/50HZ
Größe:	L1300W400H1000mm
PCB-Dicke:	0,8-3,0 mm
Schnittgeschwindigkeit:	Einstellbar
Klingenmaterial:	Skh51 Schnellarbeitsstahl
Einstellung des Obermessers:	0-5mm
Bereich der Brettbreite:	15-20mm
Anwendbares Brett:	LED-Panel, Faserplatte, Aluminiumplatte (>400 mm)
Kernkomponenten:	PLC, Getriebe, Motor, Pumpe
Schneidprozess:	Unbegrenzt
Fließband:	Im Lieferumfang enthalten
Mehrere Fräser:	Ja
Bildschirm anzeigen:	Lückenanzeige

Pcb Deapneling Machine-YSVJ-650/PCB Separator

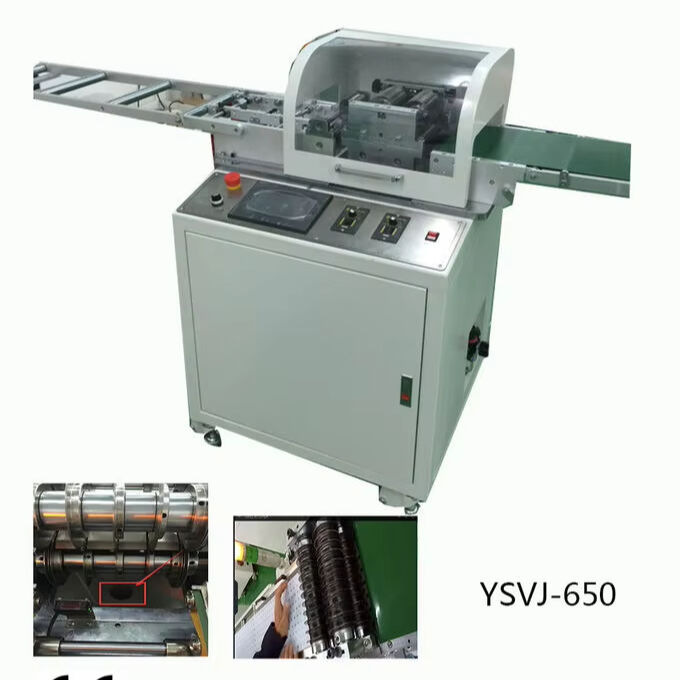

PCB Depaneling Machine YSVJ-650 / PCB Separator

YSVJ-650 PCB Singulation Machine - Advanced PCB separation solution for efficient panel processing

Key Features

Integral shaft design for top and bottom knives ensures convenient installation and maintenance
Computer screen control with production counting and preset capabilities
Direct display of cutting tool gap measurements on screen
Compatible with all V-cut PCB boards
Reduces stress during cutting to prevent solder joint cracking
Multiple cutter configuration enables simultaneous processing of several boards
Top cutter wheel adjustable range: 0-5mm
Adjustable knife distance suitable for single PCB boards within 15-20mm width
SKH51 high-speed steel blades for extended service life and wear resistance
Variable cutting speed controlled by turn-knob adjustment
Integrated conveyor belt for direct output, enabling seamless docking with downstream equipment
Capable of cutting LED panels, fiberboards, aluminum boards (over 400mm) and special boards
Multi-knife operation for simple, efficient mass production

Technical Specifications

Power Supply	110V/220V AC 60Hz/50Hz
Dimensions	L1300 × W400 × H1000mm
Weight	350 kg
Cutting Process	Unlimited cutting capacity
PCB Thickness Range	0.8-3.0mm
Applicable Materials	LED panels, fiberboards, aluminum boards (over 400mm), special boards
