Name: Automatic BGA Rework Station YS-700
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-700
Price: 7 USD
Availability: InStock

Produkt-Details

Herkunftsort: Guangdong, China

Markenname: YUSH

Zertifizierung: CE

Modellnummer: YS-700

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 1 Satz

Preis: $7,000 / set

Beste Preis erhalten

Produkt-Details

Beschreibung des Produkts

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Automatic BGA Rework Station with warranty, YS-700 PCB Depaneling Machine, BGA Rework Station for PCB repair


Gewicht:	30kg	Stromspannung:	220VAC
Leistung:	2600w	Heizleistung:	Oberer 1200W, zweiter 1200W
Temperaturgenauigkeit:	±1℃	Temperaturkontrolle:	PID mit geschlossenem Regelkreis
Genauigkeit finden:	±0,01 mm	PCB-Größe:	Maximal 140×180 mm, minimal 5×5 mm
Abmessungen:	L450×B470×H650mm	Temperaturschnittstelle:	1 Stk
Anzeige:	15-Zoll-LCD-Monitor	Ausrichtungssystem:	CCD optisch
Motortyp:	Antriebsmotor	Regler:	SPS smart
Material:	Titanlegierung

Gewicht:	30kg
Stromspannung:	220VAC
Leistung:	2600w
Heizleistung:	Oberer 1200W, zweiter 1200W
Temperaturgenauigkeit:	±1℃
Temperaturkontrolle:	PID mit geschlossenem Regelkreis
Genauigkeit finden:	±0,01 mm
PCB-Größe:	Maximal 140×180 mm, minimal 5×5 mm
Abmessungen:	L450×B470×H650mm
Temperaturschnittstelle:	1 Stk
Anzeige:	15-Zoll-LCD-Monitor
Ausrichtungssystem:	CCD optisch
Motortyp:	Antriebsmotor
Regler:	SPS smart
Material:	Titanlegierung

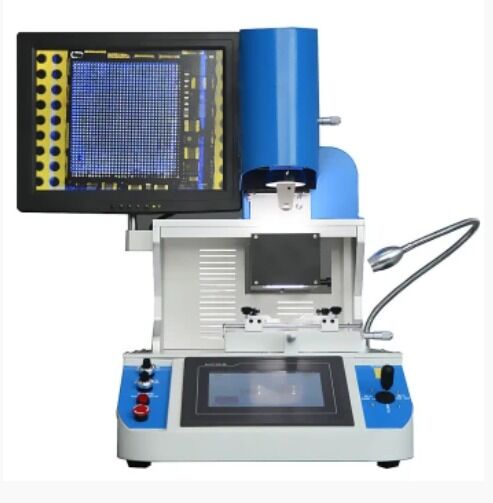

Automatic BGA Rework Station YS-700

The YS-700 BGA Rework Station is a professional-grade solution for precision BGA rework and repair operations, featuring advanced temperature control and optical alignment systems.

Key Features

Independent Dual Heating Zones: Upper and lower hot air heating with simultaneous component and PCB heating capability
Precision Temperature Control: ±1℃ accuracy with 8-segment independent temperature control
Advanced Control System: High precision K-type thermocouple closed-loop control with PID parameter self-setting
Comprehensive Data Management: 4 temperature curve display with instant analysis and multi-group user data storage
Precision Optical Alignment: High-definition CCD color optical system with auto focus and color aberration resolution
HD Touch Interface: User-friendly 15" high-definition LCD monitor with touch control
Precision Positioning: X, Y and R angle micrometer fine-tuning with ±0.01mm accuracy
Enhanced Safety: Automatic alarm system with double over-temperature protection and password protection

Technical Specifications

Parameter	Specification
Power Supply	AC 110V/220V±10% 50/60Hz
Total Power	Max 2600W
Heater Power	Upper temp.zone 1200W, Second temp.zone 1200W
Electrical Components	Driving motor + PLC smart temp. controller + Color touch screen
Temperature Control	High precision K-sensor closed loop, independent controller, ±1℃ precision
Locating Method	V shape slot, PCB support jigs adjustable
PCB Size Range	Max 140×180mm, Min 5×5mm
Overall Dimensions	L450×W470×H650mm
Temperature Interface	1 pcs
Machine Weight	30KG
Color	White & Blue
