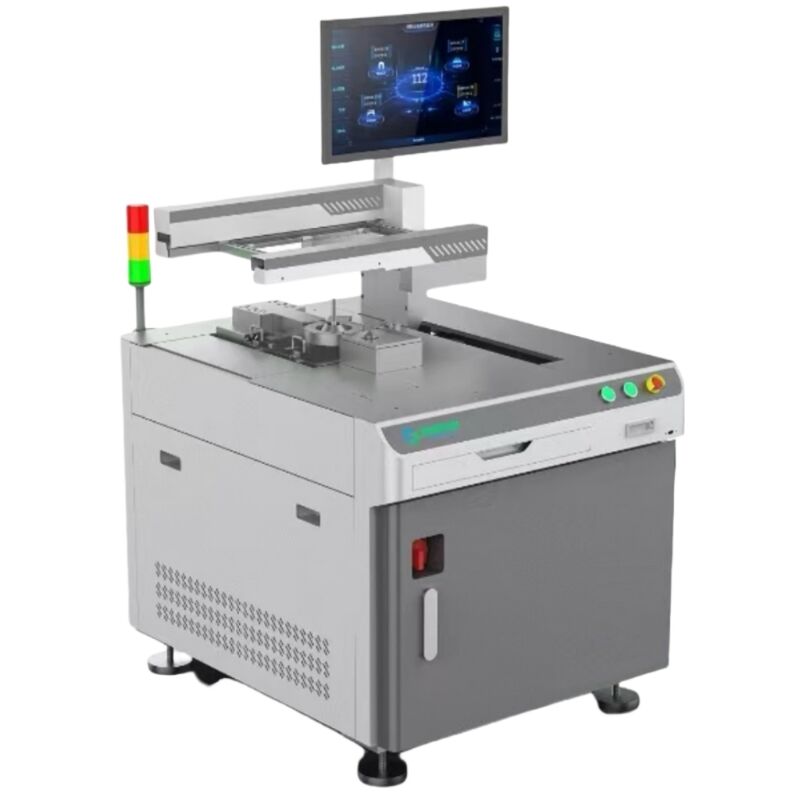

Integrated Selective Wave Soldering

Name: Integrated Selective Wave Soldering
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-450Y
Price: 10 USD
Availability: InStock

Produkt-Details

Herkunftsort: Guangdong, China

Markenname: YUSH

Modellnummer: YS-450Y

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 1 Kilogramm

Preis: $10,000 / kilogram

Beste Preis erhalten

Produkt-Details

Beschreibung des Produkts

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                selective wave soldering machine, PCB depaneling soldering equipment, integrated wave soldering system


Gewicht:	150kg	Modell:	YS-450Y
PCB-Größe:	50×50~450×400 mm	PCB-Dicke:	0,8~3 mm
Component Height:	<100mm oben, <50mm unten	Substratgewicht:	<5 Kilogramm
Biegen des Substrats:	<0,5 mm	Kapazität der Zinnöfen:	15 kg
Leistung von Zinnöfen:	2 kW	Vorheizleistung:	1 kW
Gesamtleistung:	3,5 kW	Stickstoffreinheit:	99,999 %
Strömungskapazität:	2 L	Düsen-innerer Durchmesser:	Ø 3 mm ~ Ø 20 mm
Außenmaße:	940×1280×1350 mm

Gewicht:	150kg
Modell:	YS-450Y
PCB-Größe:	50×50~450×400 mm
PCB-Dicke:	0,8~3 mm
Component Height:	<100mm oben, <50mm unten
Substratgewicht:	<5 Kilogramm
Biegen des Substrats:	<0,5 mm
Kapazität der Zinnöfen:	15 kg
Leistung von Zinnöfen:	2 kW
Vorheizleistung:	1 kW
Gesamtleistung:	3,5 kW
Stickstoffreinheit:	99,999 %
Strömungskapazität:	2 L
Düsen-innerer Durchmesser:	Ø 3 mm ~ Ø 20 mm
Außenmaße:	940×1280×1350 mm

Integrated Selective Wave Soldering

Advanced DIP Welding Solutions

Overcome traditional DIP welding challenges with our innovative selective wave soldering technology designed for modern manufacturing requirements.

Key Advantages

Flexible production for multiple varieties and small batches
Quick online welding without fixtures required
Extremely low equipment purchase cost
Reduced usage and maintenance costs (saving tin slag, flux, electricity and consumables)
100% tin penetration rate with over 98% welding yield
Compact footprint of approximately 1 square meter

Working Mode

During offline selective welding, the welding nozzle remains fixed while the PCB board moves according to programmed parameters along X, Y, and Z axes to achieve precise soldering of PCB solder joints.

Technical Specifications

Specification Items	YS-450Y / YS-450YT
Applicable PCB Board Size	L×W: 50×50~450×400 mm
Applicable PCB Board Thickness	Substrate thickness: 0.8~3 mm / Pin length: Within 3mm
Component Height	Less than 100mm above substrate / Less than 50mm below substrate
Substrate Shape and Conditions	Substrate placement edge: more than 3mm from substrate process edge Weight including components: less than 5 kilograms Substrate bending: less than 0.5mm
Tin Furnace	Material/Capacity: All-titanium alloy material/15KG Tin bath capacity power: 4×500W (2KW)
Preheating Power	Infrared preheating: 1KW
Total Power	AC 220V: 3.5KW
N2 Requirements	Nitrogen purity: 99.999% Pressure/Consumption: 0.5MPa / 20~30/min / 1.2 cubic meters
Flux Nozzle	0.5mm Precision fluid nozzles imported from Japan
Flux Capacity	2 L
Gas Source	0.5-0.7Mpa
Nozzle Inner Diameter	φ 3mm~φ 20mm (Customizable size)
Peak Height	Automatic alignment/height measurement
System Control	PC+PLC (Windows)
Programming Software	Support programming for picture line drawing (convenient and fast)
Video Surveillance	Real-time video monitoring for convenient welding effect observation
Power Supply/Power	Single-phase 220V±10% Starting power: 3.5KW
Weight	150KG (Containing solder: 12KG)
External Dimensions SW-450Y	L×W×H: 940×1280×1350 mm (With display)
External Dimensions SW-450YT	L×W×H: 1110×1280×1500 mm (Excluding three-color lights)
