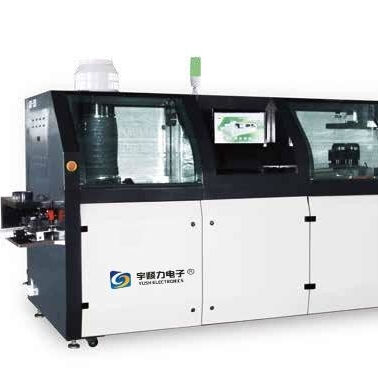

UX Series Lead Free Wave Soldering Machine
High-end 380V wave soldering system designed for superior performance and reliability in PCB assembly processes.
Product Overview
The UX series oven incorporates modular, digital, and human-centered design principles to meet evolving customer demands. This advanced system delivers exceptional functionality, performance, stability, reliability, security, maintainability, and operational efficiency while reducing operating costs. It ensures consistent product quality and production output, representing the pinnacle of wave soldering technology and the preferred investment for discerning customers.
Key Features & Components
Integrated Spray Fluxer Unit
Standard integrated spray fluxer with optional selective spray capability for precise flux application.
Modular Preheating System
Features drawer-type, modular preheating zones for flexible configuration and easy maintenance.
Advanced Solder Pot Design
Cast iron solder pot with specialized anti-corrosion coating for extended durability and performance.
Precision Width Adjustment
Manual width adjustment system with digital display for precise conveyor width settings.
Solder Pot Accessibility
Electric/manual solder pot lifting system for easy access and maintenance operations.
Technical Specifications
- Transportation System: Section floating structure prevents guide rail deformation; titanium alloy double hook fingers resist solder adhesion; direct linkage buffering with aluminum guide rails for smooth operation
- Spray Unit: Integrated modular design with quick-connect fittings; precision nozzles deliver efficient, uniform atomization for water-based flux applications
- Preheating System: Micro-hot air + infrared heating tubes; three-section temperature zones; drawer-type modular design for mixed preheating modes
- Cooling System: Forced air cooling with optional water chiller
- Solder Pot System: Special material construction with anti-corrosion treatment; easy nozzle removal/assembly; ±2℃ temperature control precision
- Control System: Windows 7 operating system with Chinese/English software; parameter setting, storage, and reuse capabilities; remote monitoring; automatic process data storage; temperature profile testing
System Components Diagram
| 01 | Buffer system |
| 02 | Flux supply system |
| 03 | Exhaust fan |
| 04 | Flux spray system |
| 05 | LCD display |
| 06 | Pre-heater |
| 07 | Solder pot lifting unit |
| 08 | Dual wave solder pot |
| 09 | Cooling system |
| 10 | Angle adjustment controller |
| 11 | Finger cleaning system |
| 12 | Conveyor system |
Packaging & Shipping
All machines are securely packaged in plywood cases to ensure safe transportation and delivery.
