                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Microfocus X-Ray inspection system, PCB depaneling machine with warranty, YSL-X5600 X-Ray solution


Stromspannung:	220V	Leistung:	1,5 KW
Gewicht:	750 kg	Abmessungen:	85010001700 mm
Kernkomponenten:	SPS, Motor, Lager, Getriebe, Motor, Druckbehälter	Auflösung:	Hohe Auflösung
Kontrollmodus:	CNC-Inspektion	Tischsteuerung:	Dreiachsige X-, Y- und Z-Bewegung
Geschwindigkeitsanpassung:	Niedrige, normale, hohe Geschwindigkeit	Spannungsregelung:	Software-Set
Stromregelung:	Software-Set	Bildeinstellungen:	Helligkeit, Kontrast, automatische Verstärkung, Belichtung
Anti-Kollisionssystem:	Maximieren Sie Neigung und Beobachtung	Automatische Analyse:	Durchmesser, Hohlraumanteil, Fläche, Rundheit
Navigation:	Automatische Infrarotnavigation

Stromspannung:	220V
Leistung:	1,5 KW
Gewicht:	750 kg
Abmessungen:	85010001700 mm
Kernkomponenten:	SPS, Motor, Lager, Getriebe, Motor, Druckbehälter
Auflösung:	Hohe Auflösung
Kontrollmodus:	CNC-Inspektion
Tischsteuerung:	Dreiachsige X-, Y- und Z-Bewegung
Geschwindigkeitsanpassung:	Niedrige, normale, hohe Geschwindigkeit
Spannungsregelung:	Software-Set
Stromregelung:	Software-Set
Bildeinstellungen:	Helligkeit, Kontrast, automatische Verstärkung, Belichtung
Anti-Kollisionssystem:	Maximieren Sie Neigung und Beobachtung
Automatische Analyse:	Durchmesser, Hohlraumanteil, Fläche, Rundheit
Navigation:	Automatische Infrarotnavigation

High Quality X-Ray Solution YSL-X5600 Microfocus X-Ray Inspection System Manufacturer

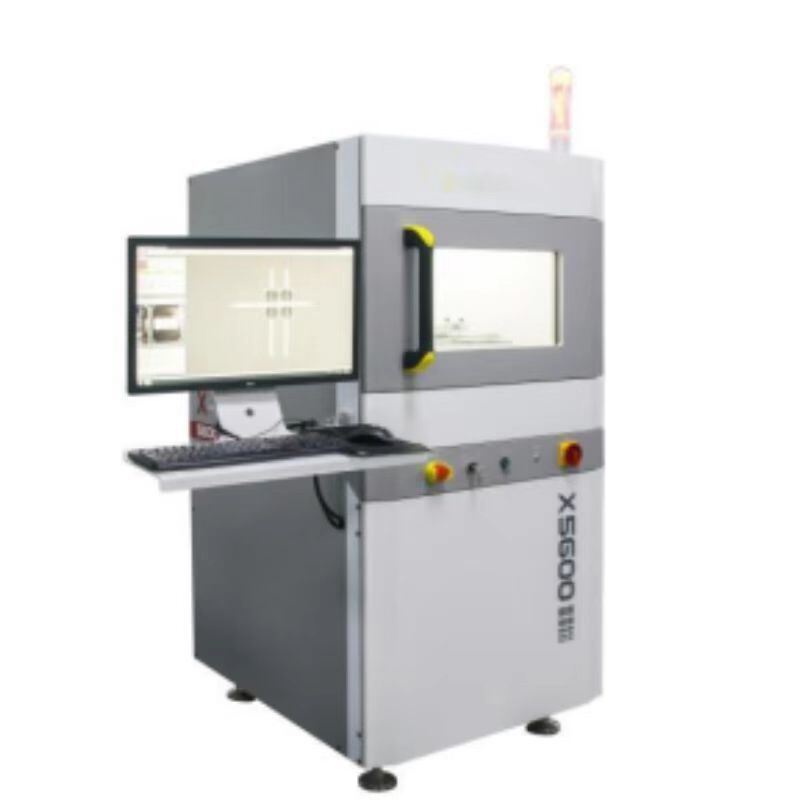

YSL-X5600 Microfocus X-Ray Inspection System

High precision microfocus X-ray inspection system for advanced electronic component analysis

Applications

Functions and Features

Application Advantages

Miniaturized equipment, easy to install and operate
Applicable to Chip, BGA/CSP, Wafer, SOP/QFN, SMT and PTU packaging, Sensors and other fields products inspection
High resolution design to get the best image in a very short time
Infrared automatic navigation and positioning function can select the shooting location quickly
CNC inspection mode which can quickly and automatically inspect multi-point array
Inclined multi-angle inspection makes it easier to inspect sample defects
Simple software operation, low operating costs
Long lifespan

Automatic Void Ratio Calculation

Enhanced BGA inspection function: YSL-X5600 can quickly select and mark a single solder ball, or select the solder balls to be inspected by matrix box; it can manually or automatically identify BGA solder balls and complete the inspection. Follow the system guidelines to easily complete the inspection process and ensure accurate and reliable inspection results.

Size Measurement

Measuring tools include distance, distance ratio, lines distance, angle, arrow mark, circle radius, points distance, circle centers distance, circumference, hand-drawn polygon, hand-drawn freeform etc., with text description capabilities.

Hardware Technical Parameters

Software Technical Parameters

Table Control

Speed of table can be adjusted by the spacebar: low, normal and high speed
X, Y, Z three-axis motion and inclined angle are controlled by keyboard
Large navigator view, clear navigation image, table will move to where you click the mouse

CNC Programming

Simply click the mouse and you can write programs
Object table moves along X, Y direction for positioning; X-ray tube move along Z direction for positioning
Voltage and current set by software
Image settings: brightness, contrast, auto gain and exposure
Users can change the pause time for program conversion
Anti-collision system can maximize the tilt and observation of the workpieces
Automatic analysis on diameter, proportion of cavity, area and roundness of BGA

X-Ray Working Principle

X-RAY Applications
