Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Large SMT PCB cleaning machine, PCB stencil resin cleaner, Hot air drying PCB depaneling machine


Gewicht:	500 KG	Leistung:	10 kW
Stromspannung:	220V/380V	Max -Schablonengröße:	L800 x B750 x H40(mm)
Waschzeit:	2 ~ 5 min	Trockenmodus:	Heißlufttrocknung
Stromversorgung:	AC380V, 50/60 Hz, 33 kW	chemischer Behälter:	50x2Stk
Harzzeit:	2 ~ 5 min	Trockenzeit:	3~5min
flüssiger Hitze Temp:	0 ~ 60 ℃	Trockener Temp:	0~90℃
Wärmeleistung waschen:	9KW	Wärmeleistung des Harzes:	9KW
Warmluftleistung:	6 kW

Gewicht:	500 KG
Leistung:	10 kW
Stromspannung:	220V/380V
Max -Schablonengröße:	L800 x B750 x H40(mm)
Waschzeit:	2 ~ 5 min
Trockenmodus:	Heißlufttrocknung
Stromversorgung:	AC380V, 50/60 Hz, 33 kW
chemischer Behälter:	50x2Stk
Harzzeit:	2 ~ 5 min
Trockenzeit:	3~5min
flüssiger Hitze Temp:	0 ~ 60 ℃
Trockener Temp:	0~90℃
Wärmeleistung waschen:	9KW
Wärmeleistung des Harzes:	9KW
Warmluftleistung:	6 kW

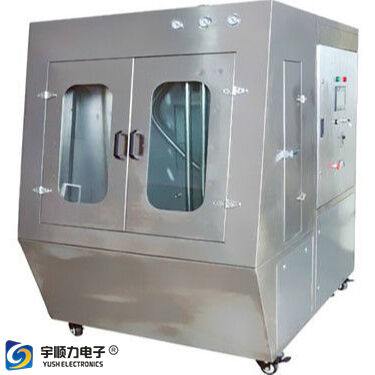

Large Size SMT PCB / Stencil Resin Cleaning Machine , Hot Air Drying

Large Size SMT PCB / Stencil Resin Cleaning Machine with Hot Air Drying

Recommended Stencil Cleaning Machine AC380V - Wash, Resin and Dry 3-in-1 System

Pneumatic stencil cleaner designed for industrial applications
High-quality electrical pump with high-pressure wash, resin, and dry processes
Total SUS 304 stainless steel structure resistant to acid and alkali corrosion
Durable construction with over 10-year lifespan
One-key automated operation with preset cleaning procedures
Versatile cleaning capability for SMT stencils, silk screens, print jigs, squeegees, large PCBA, and misprint PCBs
Completely closed spray developing process for clean workshop environment
Premium electrical and pneumatic components from Germany, USA, and Japan
Modular design for easy maintenance and service
Touch panel interface for quick parameter setting including chemical temperature, wash time, resin time/temperature, and dry time/temperature

Technical Specifications

Maximum Stencil Size	L800 x W750 x H40 (mm)
Chemical Tank Capacity	50L x 2 units
Wash Time	2~5 minutes
Resin Time	2~5 minutes
Dry Time	3~5 minutes
Resin Cycle	1~99 cycles
Cleaning Chemical	Water-based chemicals
Resin DI Water	Open loop DI water or closed loop chemical spray
Drying Mode	Hot air drying
Liquid Heating Temperature	0~60℃
Drying Temperature	0~90℃
Wash Heating Power	9KW
Resin Heating Power	9KW
Hot Air Power	6KW
Clean/Resin Filter	0.45μm
Resistivity Range	0~18MΩ
Power Supply	AC380V, 50/60Hz, 33KW
Machine Dimensions	1580 x 1180 x 1860mm (L x W x H)
