                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine with warranty, PCBA offline cleaning machine SME-5600, PCB cleaning machine for small enterprises


Gewicht:	600 kg	Leistung:	10 kW
Stromspannung:	220V, 110V	Maschinengröße:	L1300xB1200xH1850(mm)
Saubere Zeit:	10~20min (0~99min einstellbar)	Heißlufttrocknungszeit:	15~30min (0~60min einstellbar)
Korbabmessungen:	L610xB560xH100(mm)x2 Lagen	Flüssigkeitsbehälter:	60L
Fassungsvermögen des Konzentrattanks:	30L	Temporäre Tankkapazität:	18L
Zeitspülen:	1–3 Min./Zeiten (0–10 Min. einstellbar)	Spülenzeiten:	3-5-fach (1-59-fach einstellbar)
Flüssigkeit Sprühdruck:	0 bis 5 kgf/cm2	Flüssigkeitsfilter:	0.2um
DI-Wasserfilter:	0.2um

Gewicht:	600 kg
Leistung:	10 kW
Stromspannung:	220V, 110V
Maschinengröße:	L1300xB1200xH1850(mm)
Saubere Zeit:	10~20min (0~99min einstellbar)
Heißlufttrocknungszeit:	15~30min (0~60min einstellbar)
Korbabmessungen:	L610xB560xH100(mm)x2 Lagen
Flüssigkeitsbehälter:	60L
Fassungsvermögen des Konzentrattanks:	30L
Temporäre Tankkapazität:	18L
Zeitspülen:	1–3 Min./Zeiten (0–10 Min. einstellbar)
Spülenzeiten:	3-5-fach (1-59-fach einstellbar)
Flüssigkeit Sprühdruck:	0 bis 5 kgf/cm2
Flüssigkeitsfilter:	0.2um
DI-Wasserfilter:	0.2um

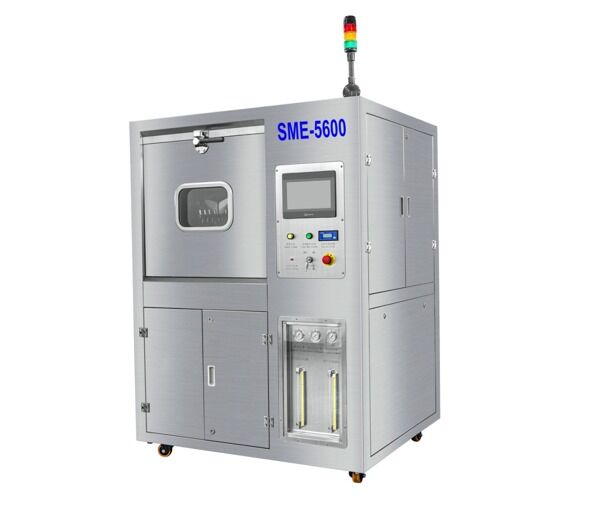

PCBA Offline Cleaning Machine SME-5600

Advanced Automated Cleaning Solution

The SME-5600 is an energy-efficient, environmentally protective, integrated high-end cleaning machine designed for automated PCBA cleaning processes. This compact system automatically completes cleaning, rinsing, and drying operations within a single chamber with the push of a start button.

Applications

Ideal for cleaning various PCBA types including automotive electronics, aerospace systems, telecommunications equipment, medical devices, and digital meters.

Compatible Contaminants

Effectively removes rosin flux, no-clean flux, water-soluble flux, solder paste balls, and other organic and inorganic contaminants from SMT and THT PCBA assemblies.

Key Features

Complete process visibility through front window with LED illumination
Fully automated operation combining cleaning, rinsing, and drying in one compact unit
Advanced nozzle design with left-right incremental arrangement for enhanced cleaning efficiency
Back-and-forth basket movement to eliminate cleaning blind spots
Adjustable nozzle pressure to prevent component collision and splash issues
Standard dilution tank heating system for improved cleaning efficiency and reduced cycle times
Comprehensive cleaning system for thorough removal of post-welding contaminants
Flexible chemical addition options: manual or automated ratio setting (5% to 25%) with DI water

Technical Specifications

Item	Specification
Rectangular Cleaning Basket	L610 x W560 x H100(mm) x 2 layers
Liquid Tank Capacity	60L
Concentrate Liquid Tank Capacity	30L
Temporary Tank Capacity	18L
Clean Time	10~20min (0~99min adjustable)
Rinse Time	1~3min/times (0~10min adjustable)
Hot Air Dry Time	15~30min (0~60min adjustable)
Rinse Times	3~5times (1~59 times adjustable)
Cleaning Liquid Temperature	Room temp ~ 75℃
Rinse DI Water Temperature	Room temp ~ 75℃
Hot Air Dry Temperature	Room temp ~ 99℃
Liquid Tank Heater Power	9KW
Temporary Tank Heater Power	6KW
Hot Air Heater Power	7.5KW
Resistivity Range	0~18MΩ
Electric Pump	4.0KW
Air Pump	1 Inch
Liquid Spray Pressure	0~5kgf/cm²
Liquid Filter	0.2um
DI Water Filter	0.2um
Air Vent Size	φ100 x H30(mm)
Power/Air Supply	AC380V, 50/60HZ, 65A / 0.5~0.7Mpa, 200~400L/Min
Machine Size	L1300 x W1200 x H1850(mm)
Machine Weight	600KG
