                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT production line unloader, PCB depaneling stacking machine, smart stacking unloader machine


Gewicht:	200kg	Luftdruck:	0,4–0,6 MPa
Stromversorgung:	einphasig 220V50HZ	Abmessungen:	113015001660mm
Magazinabmessungen:	320355570mm	PCB -Abmessungen:	L330*W250
Tonhöhe anheben:	10.20.30.40.50	Motorleistung:	90W
Steuerungssystem:	SPS-Programmierbare Steuerung	Fütterungszeit:	<5 Seconds="">
Leitschienenmaterial:	Mattiertes Aluminiumprofil	Kettentyp:	Tausend-Vögel-Kunststoffkette
Motortyp:	Winkelmotor	Antriebsmechanismus:	Kugelschraube
Bedienfeld:	LED-TFT-Touchscreen

Gewicht:	200kg
Luftdruck:	0,4–0,6 MPa
Stromversorgung:	einphasig 220V50HZ
Abmessungen:	113015001660mm
Magazinabmessungen:	320355570mm
PCB -Abmessungen:	L330*W250
Tonhöhe anheben:	10.20.30.40.50
Motorleistung:	90W
Steuerungssystem:	SPS-Programmierbare Steuerung
Fütterungszeit:	<5 Seconds="">
Leitschienenmaterial:	Mattiertes Aluminiumprofil
Kettentyp:	Tausend-Vögel-Kunststoffkette
Motortyp:	Winkelmotor
Antriebsmechanismus:	Kugelschraube
Bedienfeld:	LED-TFT-Touchscreen

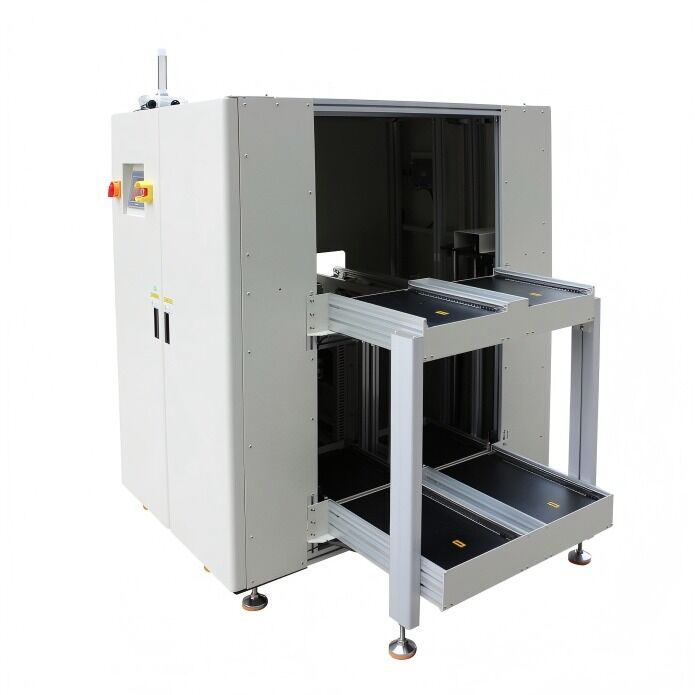

Smart Stacking Unloader Is Suitable for SMT Production Lines.

Smart Stacking Unloader for SMT Production Lines

Product Overview

This automated stacking unloader is specifically designed for SMT production lines, providing efficient PCB handling with precise control and reliable operation.

Key Features

Robust and stable mechanical design for continuous operation
PLC control system with programmable sheet feeding timing
Rapid operation with cycle times under 5 seconds
LED TFT touch screen control panel for intuitive operation
Pass-through function for continuous PCB board transfer

Technical Specifications

Parameter	Specification
External Dimensions	1130 × 1500 × 1660 mm
Guide Rail System	National standard frosted aluminum profile with thousand-bird plastic chain
Drive System	90W Taiwan special right-angle motor driving ball screw for magazine vertical movement
Magazine Specification	320mm (W) × 355mm (L) × 570mm (H)
PCB Specification	330mm (L) × 250mm (W)
Lift Platform Pitch Selection	10, 20, 30, 40, 50 mm increments
Control System	Huichuan PLC programmable controller
Power Supply	Single-phase 220V 50HZ
Air Source Requirement	0.4 - 0.6 MPa
Electrical Cabinet	Included (1 set)
