Gewicht:	70 KG	Leistung:	10 kW
Stromspannung:	220V/110V	Arbeitsbereich:	30030060 Millimeter
Arbeitsfeuchtigkeit:	20~90% keine Kondensation	Abmessungen:	485505610 mm
Viskosität der Leimpumpe:	fast alle Viskosität	Zapfanlage:	ein oder mehr
Maximale Geschwindigkeit:	500 mm/sec	Min. Abgabemenge:	0,001 ml
Auflösung:	00,01 mm	Wiederholbarkeit:	+/--0,01 Millimeter
Größe:	460450480 mm	Kernkomponenten:	Motor
Äxte:	3 oder 4

Gewicht:	70 KG
Leistung:	10 kW
Stromspannung:	220V/110V
Arbeitsbereich:	30030060 Millimeter
Arbeitsfeuchtigkeit:	20~90% keine Kondensation
Abmessungen:	485505610 mm
Viskosität der Leimpumpe:	fast alle Viskosität
Zapfanlage:	ein oder mehr
Maximale Geschwindigkeit:	500 mm/sec
Min. Abgabemenge:	0,001 ml
Auflösung:	00,01 mm
Wiederholbarkeit:	+/--0,01 Millimeter
Größe:	460450480 mm
Kernkomponenten:	Motor
Äxte:	3 oder 4

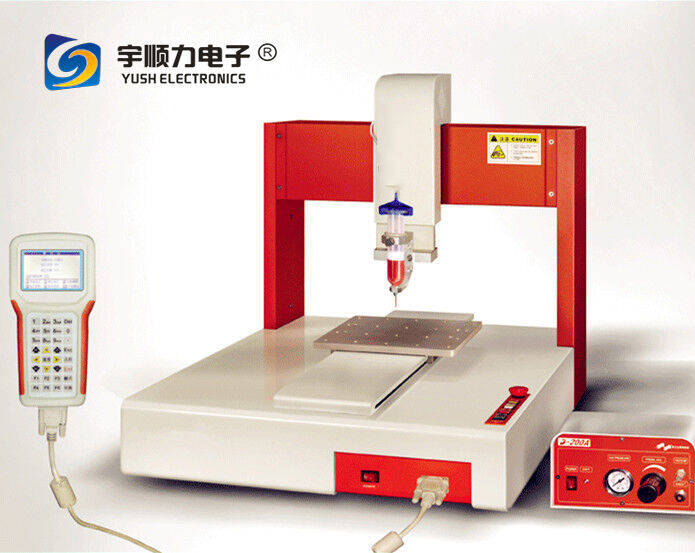

YS-S330 Professional Automatic Liquid Dispensing Machine for SMT Assembly Line

YS-S330 Professional Automatic Liquid Dispensing Machine

Advanced automated liquid dispensing system designed for SMT assembly lines and precision manufacturing applications.

Compatible Materials

Silicone glue, UV glue, AB glue, epoxy (black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, and more.

Application Capabilities

Precision dotting, line drawing, square and circle patterns, and complex irregular graphics on surfaces, exterior walls, vertical planes, and product gaps.

Technical Specifications

Model	YS-S330
Power	220/110 V
Voltage	250W
Working Area (XYZ)	30030060 mm (Customizable)
Speed	Max. 500mm/sec
Dispensing Quantity	Min. 0.001ml
Resolution	0.01mm
Repeatability	+/-0.01mm
Size (LWH)	460450480 mm
Weight	70KG

Key Features

Full automatic robot with 3 or 4 axes
Dispensing path programmable via robot or external computer import
Easy operation with amendable holder and program settings
Multiple independent running program storage capability
High precision glue control system
Multiple dispensing head configuration options
Wide dispensing area supporting multiple product setups
Customizable working table available on request

Industry Applications

Electro-acoustic industry: speakers, buzzers, audio, headphones
Inductance industries: small transformers, SMD transformers, relays, small coil motors
Communications industry: cell phone keyboard, mobile phone shells, radio, telephone, fax
Computers, digital products, digital cameras, MP3, MP4, electronic toys
Switches, connectors, wire, plug cable assemblies
Electronics: electronic components, integrated circuits, circuit board solder paste, electronic parts, LCD liquid crystal screens
Optics: optical lenses, optical heads
Mechanical hardware, battery boxes, trademarks, steam machinery spare parts
LED industries and lighting applications
